DURASILE AF-OIL Non Asbestos Gasket Sheets - Non-Metallic
400 INR/Kilograms
Product Details:
- Temperature Resistance 400 C
- Width 1500 Millimeter (mm)
- Standard BS 7531 Grade Y, ASTM F104 Line Callout: F712911E12A9B5M5
- Usage Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- Color Blue, Green (Other colors upon request)
- Product Type Non Asbestos Gasket Sheets
- Length 4500 Millimeter (mm)
- Click to View more
X
DURASILE AF-OIL Non Asbestos Gasket Sheets - Non-Metallic Price And Quantity
- 5000 Kilograms
- 400 INR/Kilograms
DURASILE AF-OIL Non Asbestos Gasket Sheets - Non-Metallic Product Specifications
- 4500 Millimeter (mm)
- Non Asbestos Gasket Sheets
- 400 C Celsius (oC)
- Yes
- 100 bar
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- 0.40mm to 6.00mm Millimeter (mm)
- 1500 Millimeter (mm)
- Other
- 400 C
- BS 7531 Grade Y, ASTM F104 Line Callout: F712911E12A9B5M5
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- Blue, Green (Other colors upon request)
DURASILE AF-OIL Non Asbestos Gasket Sheets - Non-Metallic Trade Information
- ICD TKD
- Paypal Cash Advance (CA) Cash in Advance (CID) Telegraphic Transfer (T/T) Western Union Letter of Credit (L/C)
- 300000 Kilograms Per Month
- 7 Days
- Yes
- Free samples are available
- Export Friendly Strong Wooden Pallets
- All India
- ISO 9001:2015
Product Description

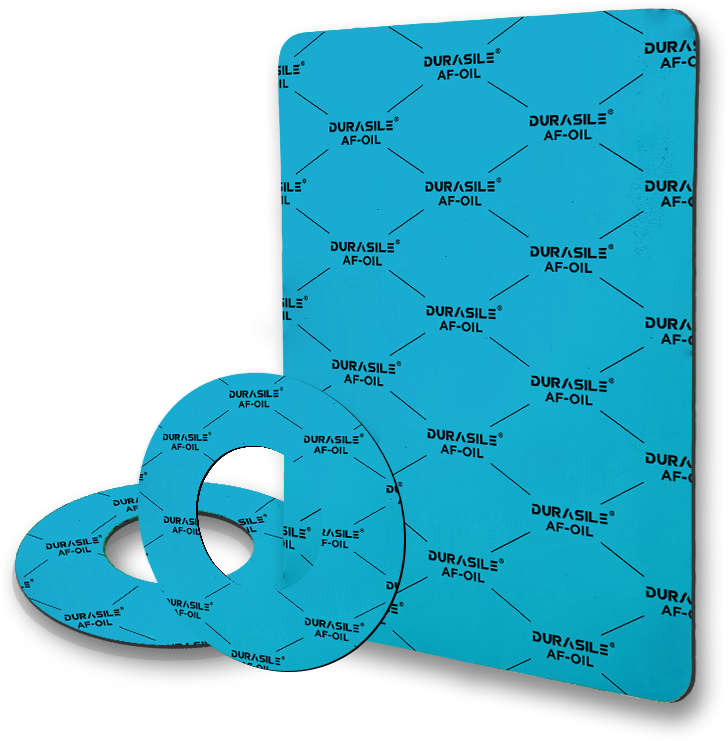

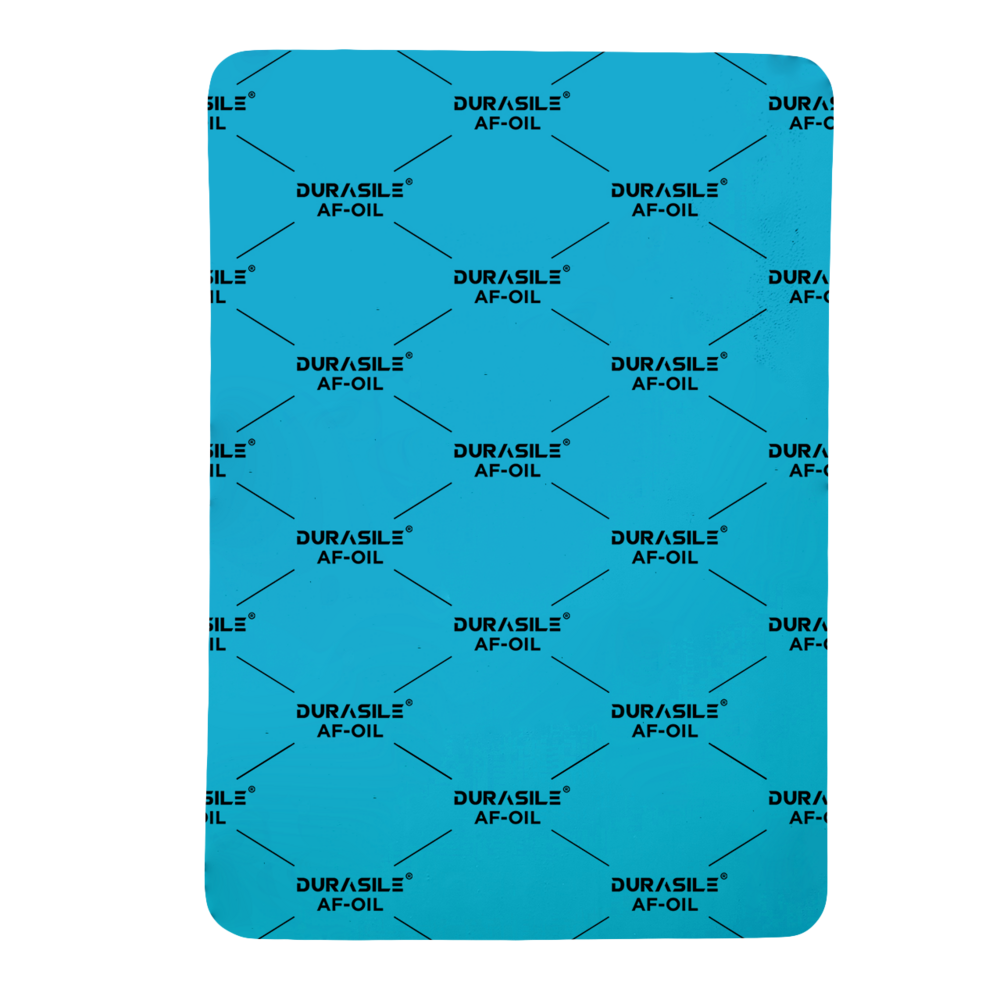

DURASILE AF-OIL (Non-Metallic)
Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet
Product Overview:
DURASILE AF-OIL is a premium-grade compressed non-asbestos (CNAF) gasket material engineered for reliable sealing performance across a wide range of industrial applications. Designed to withstand medium-stress conditions, it is extensively used in process industries, oil and gas, power plants, sugar mills, and the water and chemical sectors.
Application Suitability: The material is suitable for use with:
- Oils, fuels, lubricants, alcohols
- Gases and hydrocarbons
- Steam and water
- Cooling liquids
- Most diluted acids and alkalis
Composition:
DURASILE AF-OIL is manufactured from a blend of aramid fibres and organic fibres, reinforced and bonded with high-quality nitrile rubber (NBR). The sheets are produced using the hot calendering process under stringent quality controls, compliant with ISO 9001 certified systems.
Compliance Standards:
- BS 7531 Grade Y
- ASTM F104 Line Callout: F712911E12A9B5M5
Technical Details
| Parameter | Specification |
|---|---|
| Maximum Peak Temperature (C) | 400 C |
| Maximum Operating Temperature (C) | 250 C |
| Maximum Peak Pressure (bar) | 100 bar |
| Available Thickness (in mm) | 0.50 to 5.00 (other thickness available on request) |
| Available Colors | Blue, Green (other colors available on request) |
| Available Sheet Sizes (in mm) | 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
