DURASILE AF-GEN-WR Non Asbestos Gasket Sheets - Metallic
200 INR/Kilograms
Product Details:
- Working Temperature 250 C Celsius (oC)
- Temperature Resistance 250 C
- Color Grey/Graphite
- Product Type Non Asbestos Gasket Sheets
- Usage Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry
- Size 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- Width 1500 Millimeter (mm)
- Click to View more
X
DURASILE AF-GEN-WR Non Asbestos Gasket Sheets - Metallic Price And Quantity
- 200.00 - 450.00 INR/Kilograms
- 200 INR/Kilograms
- 3000 Kilograms
DURASILE AF-GEN-WR Non Asbestos Gasket Sheets - Metallic Product Specifications
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry
- 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- 1500 Millimeter (mm)
- 250 C Celsius (oC)
- 250 C
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- Grey/Graphite
- Non Asbestos Gasket Sheets
- Other
- 70 bar
- Wire-Reinforced Non Asbestos Gasket Sheet
- 0.80mm to 6.00mm
- Other
- 4500 Millimeter (mm)
- Yes
DURASILE AF-GEN-WR Non Asbestos Gasket Sheets - Metallic Trade Information
- ICD TKD
- 300000 Kilograms Per Month
- 7 Days
- Yes
- Free samples are available
- Export Friendly Strong Wooden Pallets
- Central America North America Asia Australia South America Eastern Europe Western Europe Middle East Africa
- All India
- ISO 9001:2015
Product Description

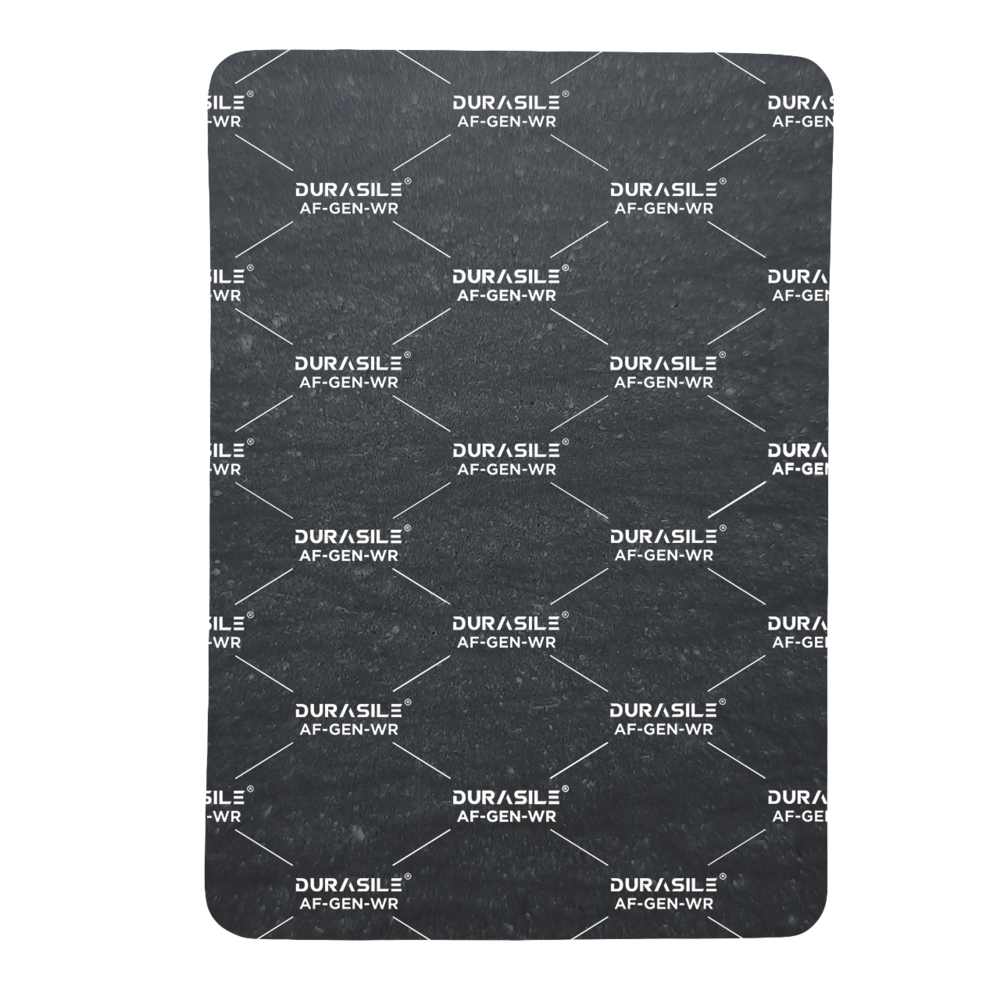

DURASILE AF-GEN-WR (Metallic)
Wire-Reinforced Compressed Non-Asbestos (CNAF) Gasket Sheet ï Ideal for Water, Oil & Light Loading Applications
Product Overview:
DURASILE AF-GEN-WR is a metallic, wire-reinforced compressed non-asbestos (CNAF) gasket sheet, designed for reliable sealing performance in low to medium stress conditions. With excellent water and oil resistance, it is widely used across the process industries, chemical plants, water treatment systems, and general industrial applications. The wire reinforcement adds enhanced mechanical strength and dimensional stability, making it ideal for light loading applications where added rigidity is required.
Key Features & Applications:
- Wire-reinforced CNAF gasket sheet for improved strength and sealing reliability
- Suitable for water, oil, light to medium pressure steam, fuels, and inert gases
- Ideal for flanged joints, pumps, valves, and low-stress sealing systems
- Widely used in chemical processing, water treatment, and general engineering applications
- Excellent oil and water resistance under low mechanical stress conditions
Composition:
DURASILE AF-GEN-WR is manufactured using a carefully selected blend of mineral fibres and organic fibres, bonded with high-quality nitrile rubber (NBR). The sheet is reinforced with embedded wire mesh to offer superior mechanical durability and dimensional stability. Produced through the hot calendering process, it complies with stringent ISO 9001 certified quality control protocols for consistency and reliability.
Compliance Standards:
- Manufactured under ISO 9001 certified quality systems
- Wire-reinforced to meet industrial metallic gasket sheet requirements
Benefits & Advantages:
- Enhanced strength due to wire reinforcement, suitable for demanding assembly conditions
- Excellent resistance to water, oil, and low-pressure steam
- Designed for low stress sealing where metallic strength is required
- Non-asbestos composition for safe, modern industrial sealing
- Suitable for a wide range of industrial gasket applications
Technical Details
| Parameter | Specification |
|---|---|
| Maximum Peak Temperature (C) | 250 C |
| Maximum Operating Temperature (C) | 200 C |
| Maximum Peak Pressure (bar) | 70 bar |
| Available Thickness (in mm) | 0.80 to 5.00 (other thickness available on request) |
| Available Colors | Grey/Graphite |
| Available Sheet Sizes (in mm) | 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
