DURASILE AF-OIL-LT Non Asbestos Gasket Sheets - Non-Metallic
250 INR/Kilograms
Product Details:
- Length 4500 Millimeter (mm)
- Product Type Non Asbestos Gasket Sheets
- Temperature Resistance 300 C
- Color Green
- Usage Industrial
- Working Temperature 300 Celsius (oC)
- Hardness Yes
- Click to View more
X
DURASILE AF-OIL-LT Non Asbestos Gasket Sheets - Non-Metallic Price And Quantity
- 250 INR/Kilograms
- 5000 Kilograms
DURASILE AF-OIL-LT Non Asbestos Gasket Sheets - Non-Metallic Product Specifications
- Other
- Industrial
- Green
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- 300 C
- Non Asbestos Gasket Sheets
- 4500 Millimeter (mm)
- ASTM F 104 Line call out: F712122A9B4E12M9
- Yes
- 300 Celsius (oC)
- 0.40mm to 6.00mm Millimeter (mm)
- 1500 Millimeter (mm)
- 80 bar
- 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
DURASILE AF-OIL-LT Non Asbestos Gasket Sheets - Non-Metallic Trade Information
- ICD TKD
- Paypal Cash Advance (CA) Cash in Advance (CID) Telegraphic Transfer (T/T) Western Union Letter of Credit (L/C)
- 30000 Kilograms Per Month
- 7 Days
- Yes
- Free samples are available
- Export Friendly Strong Wooden Pallets
- All India
- ISO 9001:2015
Product Description

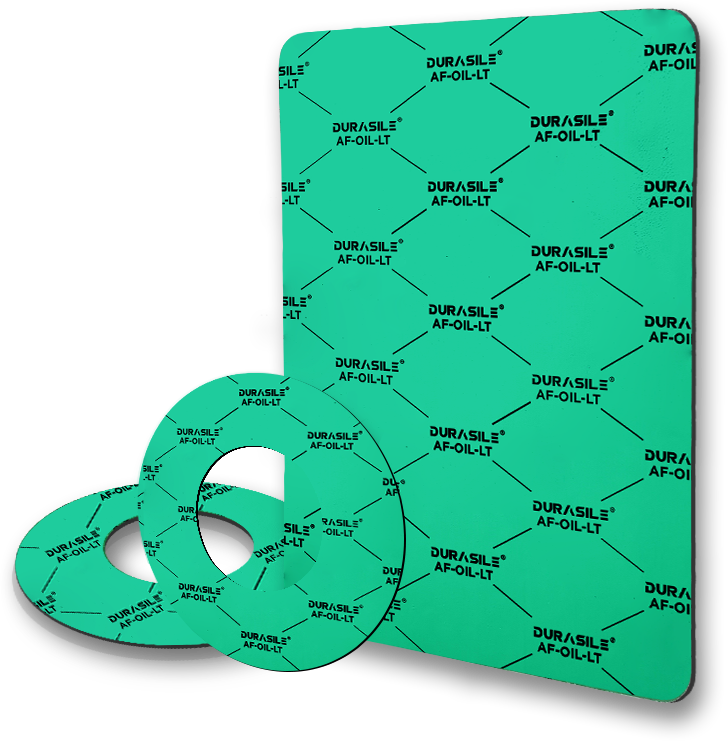

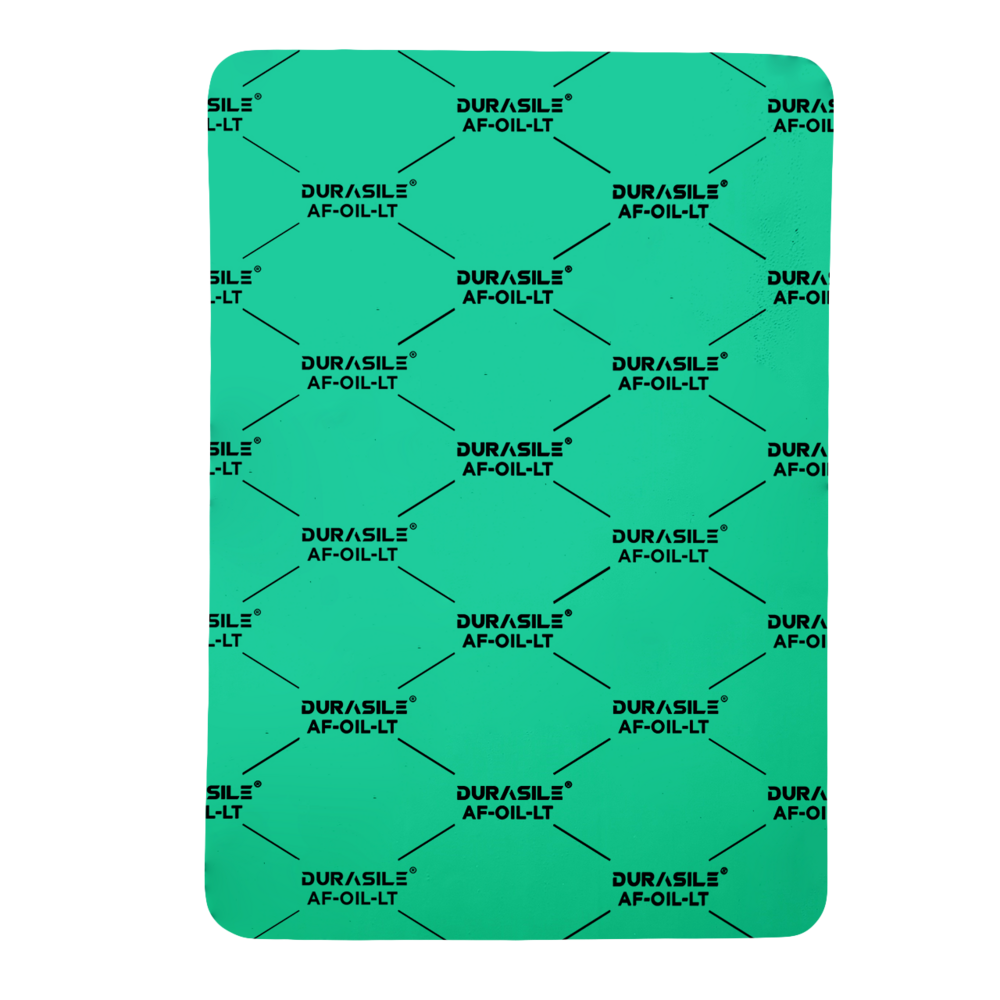

DURASILE AF-OIL-LT (Non-Metallic) “ High-Performance CNAF Gasket Sheet for Medium Stress Applications
Premium Asbestos-Free Jointing Sheet for Oils, Fuels, Chemicals & Industrial Fluids
Product Overview:
DURASILE AF-OIL-LT is a compressed non-asbestos (CNAF) gasket sheet engineered for reliable sealing performance in medium-stress industrial applications. Specially designed for use in oil refineries, chemical plants, power plants, sugar mills, and general process industries, this gasket material delivers excellent resistance to oils, fuels, lubricants, alcohols, gases, hydrocarbons, steam, water, and diluted acids and alkalis.
Key Features & Applications:
- Ideal for medium pressure and temperature sealing environments
- Compatible with a wide range of industrial fluids including cooling liquids, steam, and chemicals
- Perfect for flange joints, pumps, valves, compressors, and pipe systems
- Used across oil & gas, chemical processing, power generation, and water treatment industries
- Designed for durability, flexibility, and leak prevention under demanding conditions
Composition & Manufacturing Process:
DURASILE AF-OIL-LT is formulated from aramid fibres and organic fibres, bonded with nitrile butadiene rubber (NBR). It is manufactured using the hot calendaring process, ensuring consistent thickness, density, and performance. The entire production process is conducted under ISO 9001-certified quality control, delivering a product that meets the highest international standards.
Compliance & Standards:
- ASTM F 104 Line Callout: F712122A9B4E12M9
- Manufactured in accordance with ISO 9001 quality systems
Benefits at a Glance:
- Asbestos-free, eco-friendly formulation
- Excellent chemical resistance to industrial oils and fluids
- Maintains sealing integrity under medium thermal and mechanical stress
- Versatile usage across multiple industries and applications Long-lasting, cost-effective sealing solution
Technical Details
| Parameter | Specification |
|---|---|
| Maximum Peak Temperature (C) | 300 C |
| Maximum Operating Temperature (C) | 220 C |
| Maximum Peak Pressure (bar) | 80 bar |
| Available Thickness (in mm) | 0.50 to 5.00 (other thickness available on request) |
| Available Colors | Green, Blue (other colors available on request) |
| Available Sheet Sizes (in mm) | 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
