DURASILE AF-ACID Non Asbestos Gasket Sheets - Non-Metallic
450 INR/Kilograms
Product Details:
- Hardness Yes
- Standard ASTM F104 Line Callout: F719911E19A9B3M6
- Usage Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- Size 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- Pressure Resistance 150 bar
- Width 1500 Millimeter (mm)
- Working Temperature 400 C Celsius (oC)
- Click to View more
X
DURASILE AF-ACID Non Asbestos Gasket Sheets - Non-Metallic Price And Quantity
- 450 INR/Kilograms
- 5000 Kilograms
DURASILE AF-ACID Non Asbestos Gasket Sheets - Non-Metallic Product Specifications
- 400 C
- 4500 Millimeter (mm)
- White
- Non Asbestos Gasket Sheets
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- 1500 Millimeter (mm)
- 400 C Celsius (oC)
- Other
- ASTM F104 Line Callout: F719911E19A9B3M6
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- 150 bar
- Yes
- 0.40mm to 6.00mm Millimeter (mm)
DURASILE AF-ACID Non Asbestos Gasket Sheets - Non-Metallic Trade Information
- ICD TKD
- 5000 Kilograms Per Month
- 7 Days
- Yes
- Free samples are available
- Export Friendly Strong Wooden Pallets
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
- All India
- ISO 9001:2015
Product Description

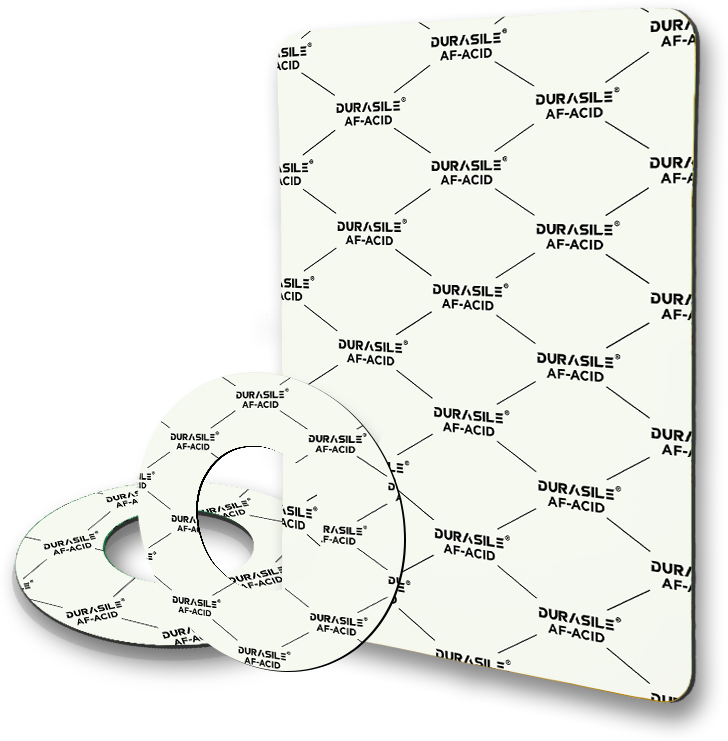

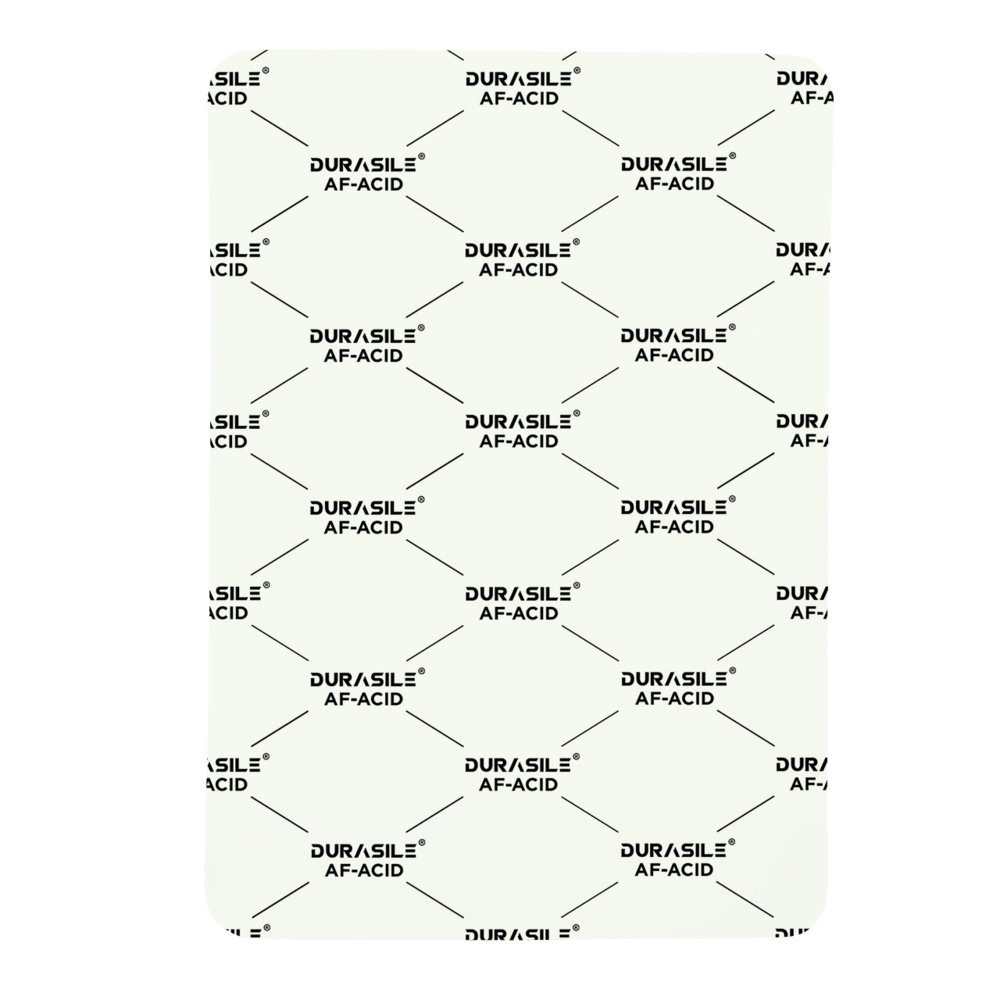

DURASILE AF-ACID (Non-Metallic)
Compressed Non-Asbestos Fibre (CNAF) Gasket Sheet
Product Overview:
DURASILE AF-ACID is a high-performance compressed non-asbestos (CNAF) gasket material specifically developed for use in chemically aggressive environments. It is widely utilized across process industries, water treatment plants, and the chemical industry for its excellent chemical resistance and sealing capabilities under medium-stress conditions.
Application Suitability:
DURASILE AF-ACID is suitable for:
- Highly aggressive chemical media
- Acidic and alkaline substances
- Applications requiring strong chemical resistance and dimensional stability
Composition:
This gasket sheet is manufactured from a blend of mineral and aramid fibres, bonded with synthetic elastomers (CSM). It is produced using the hot calendering process under strict quality control procedures certified to ISO 9001 standards.
Compliance Standards: ASTM F104 Line Callout: F719911E19A9B3M6
Technical Details
| Parameter | Specification |
|---|---|
| Maximum Peak Temperature (C) | 400 C |
| Maximum Operating Temperature (C) | 270 C |
| Maximum Peak Pressure (bar) | 150 bar |
| Available Thickness (in mm) | 0.50 to 5.00 (other thickness available on request) |
| Available Colors | White (other colors available on request) |
| Available Sheet Sizes (in mm) | 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
