DURASILE AF-GF Non Asbestos Gasket Sheets - Non-Metallic
550 INR/Kilograms
Product Details:
- Standard BS 7531 Grade X, ASTM F104 Line Callout: F712112A9B3E12A9M4
- Size 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- Color Green, Blue, Dark Beige
- Width 1500 Millimeter (mm)
- Working Temperature 450 C Celsius (oC)
- Product Type Non Asbestos Gasket Sheets
- Pressure Resistance 150 bar
- Click to View more
X
DURASILE AF-GF Non Asbestos Gasket Sheets - Non-Metallic Price And Quantity
- 5000 Kilograms
- 550 INR/Kilograms
DURASILE AF-GF Non Asbestos Gasket Sheets - Non-Metallic Product Specifications
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
- 450 C
- 4500 Millimeter (mm)
- Non Asbestos Gasket Sheets
- 450 C Celsius (oC)
- 150 bar
- Other
- 0.40mm to 6.00mm Millimeter (mm)
- 1500mm X 1500mm, 1500mm X 2000mm, 1500mm X 2250mm, 1500mm X 3000mm, 1500mm X 4500mm, 2000mm X 3000mm
- Green, Blue, Dark Beige
- 1500 Millimeter (mm)
- BS 7531 Grade X, ASTM F104 Line Callout: F712112A9B3E12A9M4
- Sealing Industry, Fluid Industry, Oil & Gas Industry, Power Plants, Gasket Industry.
DURASILE AF-GF Non Asbestos Gasket Sheets - Non-Metallic Trade Information
- ICD TKD
- 5000 Kilograms Per Month
- 7 Days
- Yes
- Free samples are available
- Export Friendly Strong Wooden Pallets
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
- All India
- ISO 9001:2015
Product Description

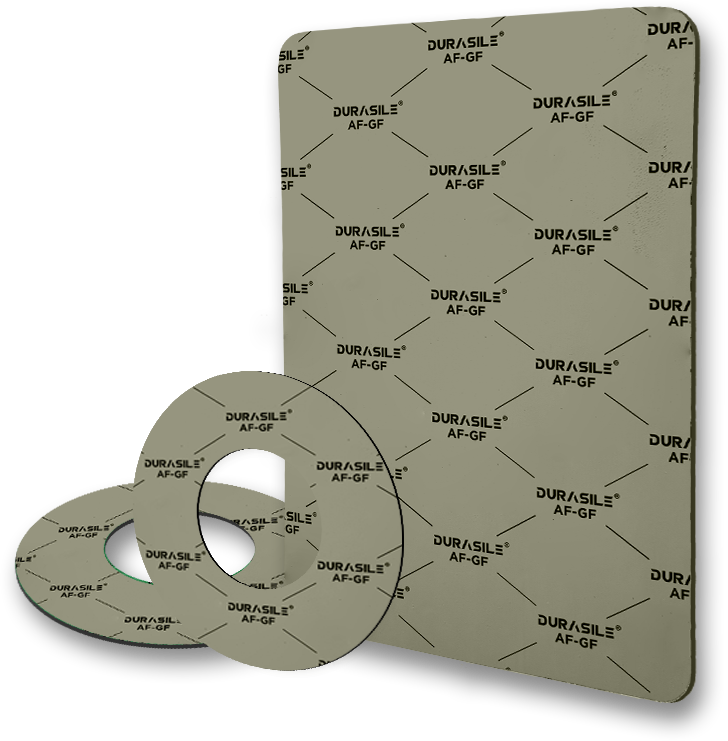

DURASILE AF GF (Non Metallic)
Compressed Non Asbestos (CNAF) Gasket Sheet - Premium Steam and Hot Water Resistant Material
Product Overview
DURASILE AF GF is a high-performance compressed non-asbestos (CNAF) gasket material, engineered for demanding applications across process industries, oil and gas, power plants, sugar mills, and water and chemical industries. This gasket sheet offers excellent resistance to steam and hot water, making it ideal for high-temperature and high-pressure environments. It provides enhanced stress relaxation and reliable sealing in a wide range of fluid and gas applications.
Key Features & Applications
- Premium gasket material for industrial applications
- Exceptional resistance to steam and hot water
- Suitable for sealing oils, fuels, gases, freons, pipelines, radiators, boilers, and more
- Used extensively in flanged joints across chemical processing, oil and gas, and power generation industries
- Offers excellent stress relaxation and high sealing reliability
Composition
DURASILE AF-GF gasket sheets are manufactured using a robust combination of aramid fibres and glass fibres, which are bonded with nitrile rubber (NBR). This advanced material is produced through the hot calendering process, ensuring uniform quality and performance. The manufacturing process adheres to stringent ISO 9001 quality control standards.
Compliance Standards
- BS 7531 Grade X
- ASTM F104 Line Callout: F712112A9B3E12A9M4
Technical Details
| Parameter | Specification |
|---|---|
| Maximum Peak Temperature (C) | 450 C |
| Maximum Operating Temperature (C) | 350 C |
| Maximum Peak Pressure (bar) | 150 bar |
| Available Thickness (in mm) | 0.50 to 5.00 (other thickness available on request) |
| Available Colors | Dark Beige, Green, Blue (other colors available on request) |
| Available Sheet Sizes (in mm) | 1500 X 1500, 1500 X 2000, 1500 X 2250, 1500 X 3000, 1500 X 4500, 2000 X 3000 |
